Split bus photos (various brands).


Richard Moore
 Share

Recommended Posts

I may have posted this before a long time ago, but I thought it might be of some use after the other split-bus thread.

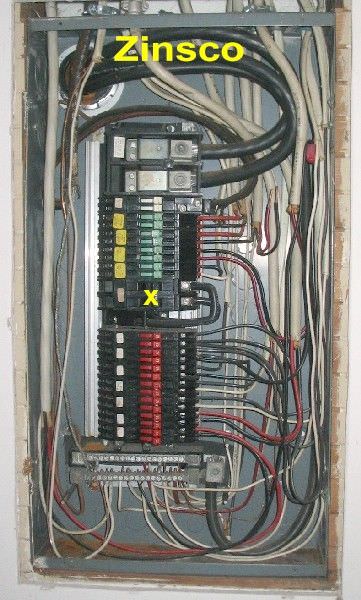

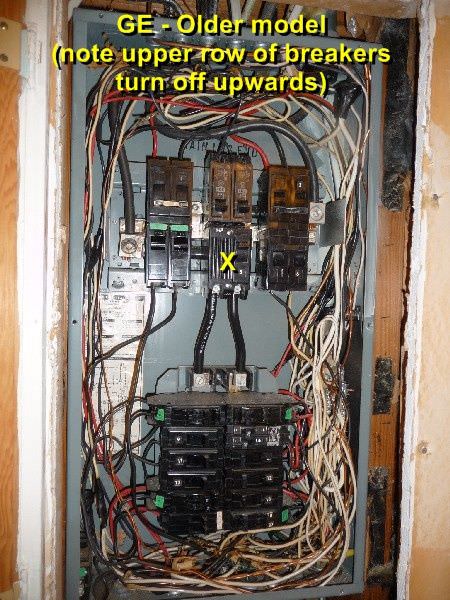

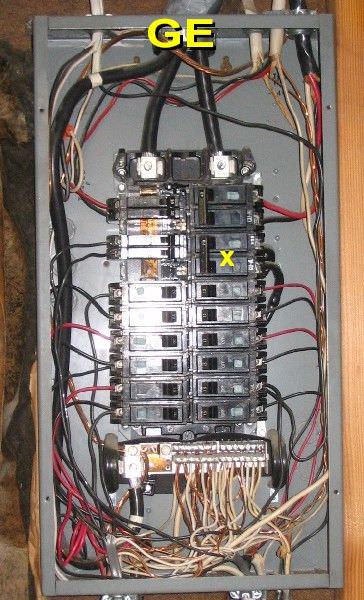

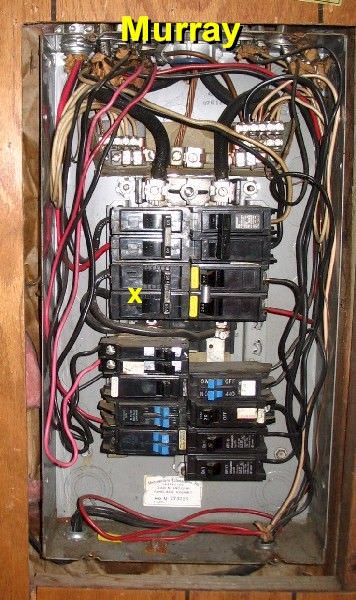

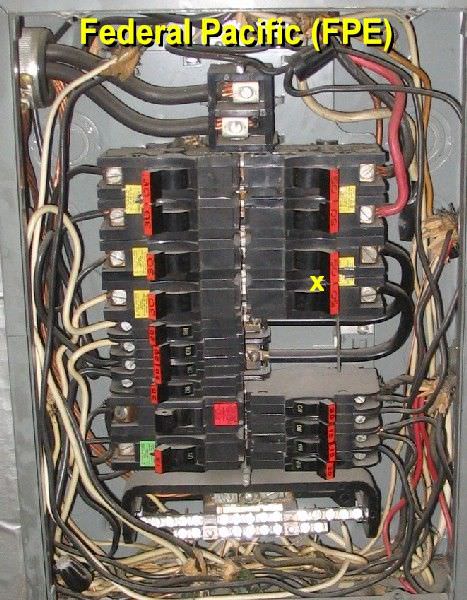

In each case I have marked the breaker that feeds the lower half with an "X".

Click to Enlarge

68.28 KB

Click to Enlarge

89.42 KB

Click to Enlarge

70.72 KB

Click to Enlarge

92.3 KB

Click to Enlarge

74.41 KB

Click to Enlarge

55.72 KB

Click to Enlarge

67.53 KB

And there are many variations of those.
